Description

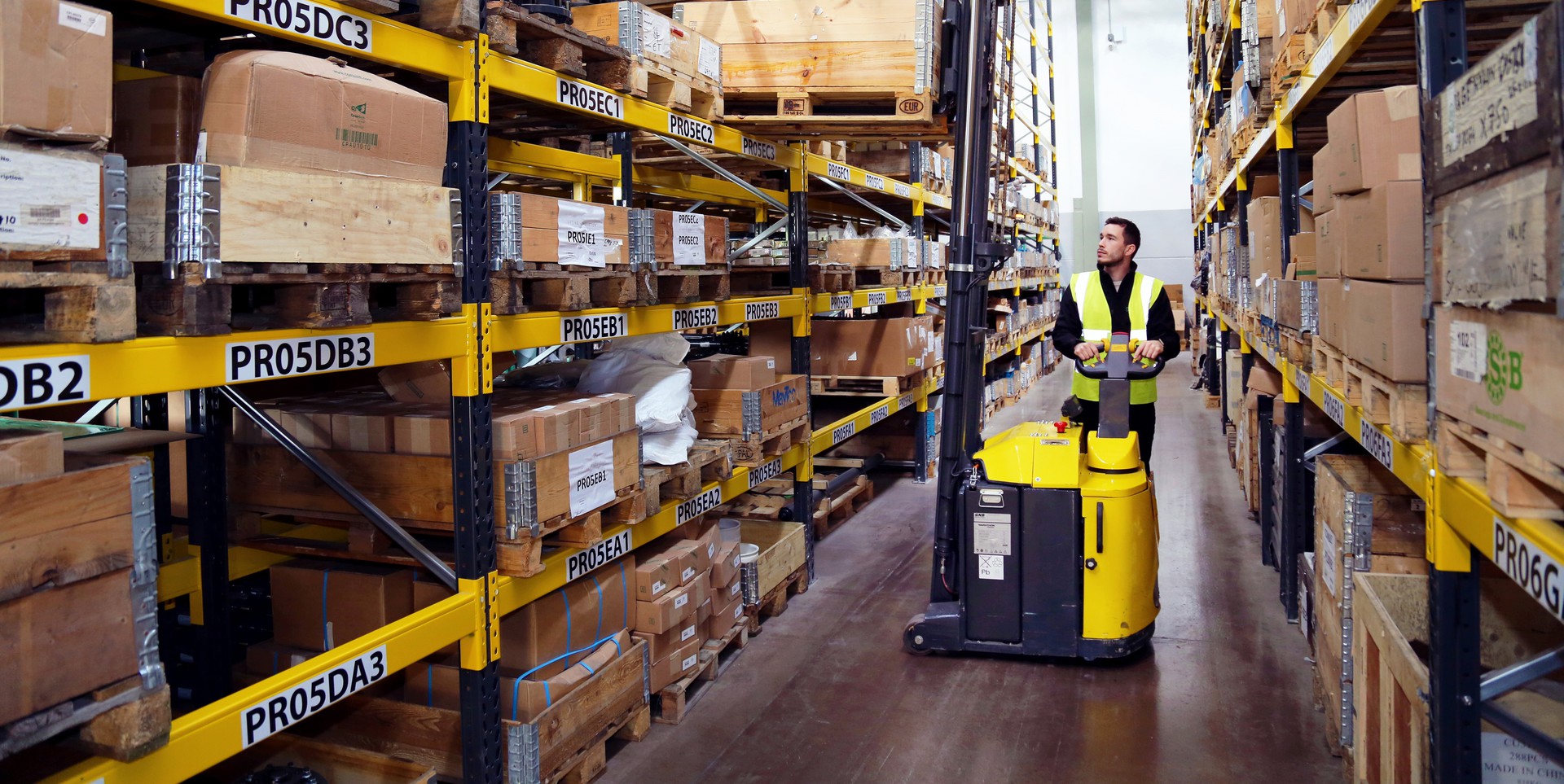

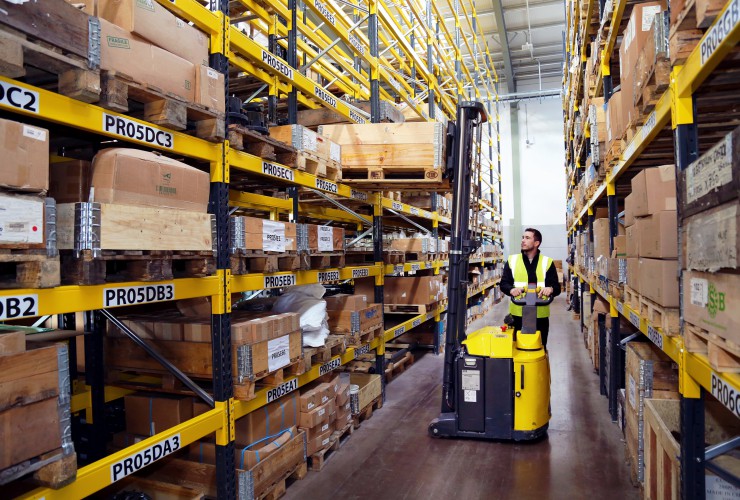

The Combi-CS is a pedestrian operated counterbalance stacker which was developed to handle pallets and regular loads in narrow confines. The internationally patented and award-winning multi-position tiller arm is a key feature on the machine for safer operation, maximum operator visibility and narrow aisle performance.The operator’s working position alongside the unit also enables aisle widths to be narrowed down. With the length from the back of the unit to the face of the forks of just 1050mm, the Combi-CS offers space saving operation and can also block stack standard pallets for maximum use of storage capacity.

Low effort AC power steering and a display unit fitted on the tiller arm for monitoring by the operator are further advantages. The powerful high capacity 375Ah battery guarantees constant availability even throughout long shifts and its roll out design enables quick and easy changing. A tilting mast comes as standard – a feature not available on many pedestrian trucks.

Innovations

The Combi-CS is the only pedestrian counterbalance stacker that will operate in a conventional reach truck aisle. Combilift’s unique, internationally patented and award-winning multi-position tiller arm is a key feature on the machine for safer operation, maximum operator visibility and narrow aisle performance. The tiller can be turned to the left or right of the unit to position the rear drive wheel, allowing the operator to remain at the side of the machine rather than at the rear as is the case with other pedestrian stackers.

This position reduces the risk of operators being trapped or crushed between the back of the truck and racking when handling products in narrow aisles. It also allows for full visibility of both the load and the forks as the operator does not need to look through the mast and therefore enables higher awareness of other pedestrians in the vicinity. The tilting mast benefits the operator for picking and placing of loads. The 5 degree rearward tilt keeps the load secure on the forks when travelling. The low mast pivot point combined with the rearward tilt decreases the load moment when loads are being picked or placed at height. The dual side by side front wheels provide maximum wheel base length and reduces wheel scrub when making tight turns. The rear 2.5Kw drive wheel coupled with low effort power steering provides the operator with maximum traction and control of the truck.

Market relevance

This product is very relevant to the market. Along with other Combilift pedestrian trucks, the Combi-CS was developed following specific requests from customers for pedestrian trucks that were superior to other types and brands on the market in terms of safety, manoeuvrability, versatility and space saving operation. The demand for pedestrian operated trucks due to many of the reasons quoted in this submission is growing rapidly and from Combilift’s view the sales potential of the Combi-CS is substantial. The ability to turn the tiller arm to the left or right enables operation in tight confines and narrow aisles for improved storage density which is a substantial advantage when space is costly. Where possible and depending on the loads to be handled the preference is for this type of equipment rather than ride-on forklifts. Companies in the logistics and warehousing, manufacturing, food & beverage, DIY and retail sectors benefit from the safe and space saving operation that the Combi-CS can offer. Combilift expects its pedestrian truck range to be one of its largest growing product segments in the next few years.

Customer benefits

Thanks to the multi-position tiller arm customers benefit from increased safety – a number one priority. It is particularly beneficial for companies who need to move goods around in areas where not only employees but also the general public may be present, such as in DIY and retail outlets. Electric power enables low-emission and quiet operation. Energy efficiency, low maintenance and therefore low operating costs guarantee economical operation and good ROI. The Combi-CS is compact, manoeuvrable and has a small turning circle and can be operated in tight spaces so does not require costly storage space to be sent aside for its operation. It is quick and easy to train operators to work with the Combi-CS, so therefore more time and cost effective compared to training on ride-on forklifts.
